Quick Details

  • Usage: Bird, Chicken, Duck, Emu, Goose, Ostrich, Reptile, Turkey, Quail
  • Egg Capacity(pcs): 3168
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: ZHENGHANG
  • Model Number: ZH-3168
  • Voltage: 110V/ 180~240V; 50HZ-60HZ
  • Power(W): 480W
  • Dimension(L*W*H): 2.15*1.05*1.34M
  • Weight: 320KG

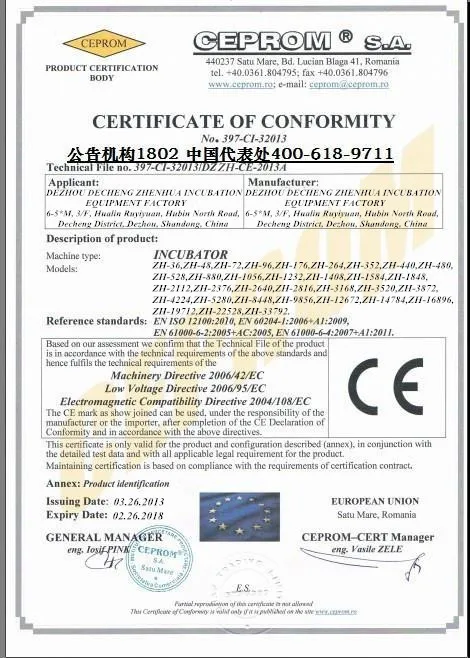

  • Certification: CE certificate
  • Warranty: 3 years
  • After-sales Service Provided: Overseas third-party support available
  • materials: colorful steel crust and edge with aluminum alloy
  • color: white
  • hatcher rate: more than 98%
  • any questions contact me: whatsapp: +86.15965977837
  • chicken egg capacity: setter : 3168 eggs; hatcher 3168 eggs

Packaging & Delivery

Packaging Details wooden case and foam inside in high quality
Delivery Time within 1~3 days after you confirm order

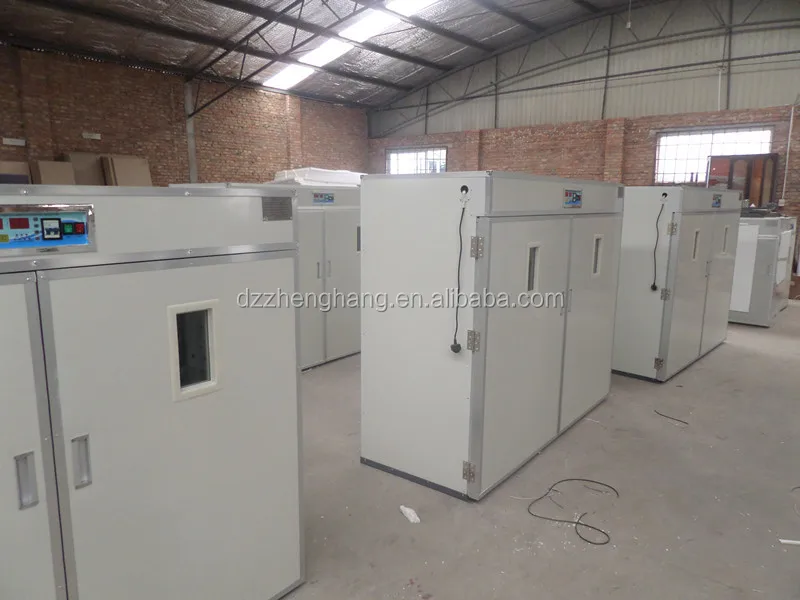

3168 chiken egg incubator / big incubator factory

(Lydia chang: 0086.15965977837)





Product Description



NEW Model ZH-3168 setter & hatcher combined

[Model  number]: ZH-3168 setter & hatcher combined

with 36 yellow hatcher boxes and 36 egg trays

[ Gross  weight ]: 320kg

[ package size ]: 2.15*1.05*1.34M

[Power]: 480W

[ Voltage ]: AC180V—240V, 50Hz

[Capacity]: Setter 3168eggs

                  Hatcher 3168eggs


Feature:
in machine we put hatcher box , in each hatcher box with a egg tray.
first 18days you put eggs on egg tray , last 3 days you needn't do anything ,just stop egg turning. you use this machine to hatcher eggs.
so you can finish all process in one machine, it is easy to operate .



in machine with 36pcs egg trays & 36pcs hatcher boxes

in each hatcher box with one egg tray








NEW Model ZH-3168 setter & hatcher combined with wheel (trolley model )

in machine with 36pcs egg trays & 36pcs hatcher boxes and with wheel









Normal model incubator machine

in machine with 36pcs egg trays & 1pc big hatcher boxes:



3168 normal model with wheel(trolley model)



hatcher machine separately ( for last 3days ):







Main Technical Parameters of Poultry Incubator Hatcher:

1. Range of temperature display: 5~50°C
2. Precision of Temperature control: ±0.1°C
3. Range of humidity display: 0—99%RH
4. Precision of humidity display: 1%RH
5. QTY of output circuit: 7 (overheat,heat control,low temperature,egg turning in left & right direction,humidity control,alarm)
6. output current: heat control,low temperature in 10A, others in 1A
7. Times of egg turning: Max record is 999 times.
8. Period of egg turning: adjustable between 0.1 and 99.9 hours (Fixed in 1.5 hours when delivery)
9. Time of egg turning: adjustable between 1 and 255 seconds (fixed in 180 seconds when delivery)
10. Period of ventilation: adjustable between 5 and 999 minutes (Fixed in zero when delivery, no ventilation)
11. Time of ventilation: adjustable between 0 and 999 second(Fixedin 30 second when delivery)
12. Length of measuring line:around 1.5meters

13. Lifetime: 10-12 years.





Using Your Egg Incubator:

1.Put water into the tray before use , the water level must be higher than the heater

2.Put the eggs on the egg tray

3.Plug in power

4.Temperature and humidity setting (Chicken eggs need 21days ,first 18days Temperature is 38°C and Humidity is 60RH ;last 3days the temperature is the same and the humidity is 70RH )



5.Factory setting :Reference temperature & humidity :38°C& 60%RH

  Cycle of Egg-turning :90-minute

  Time of Egg-turning :180 seconds

 Ventilation cycle :120 minutes

 Ventilation time :30 seconds







Packaging & Shipping





Company Information



Other products we have :

Industrial incubator from 88~50688 eggs

Mini incubator model: ZH-8 , ZH-12, ZH-24, ZH-15, ZH-32, ZH-36, ZH-48, ZH-56, ZH-60, ZH-72, ZH-96, ZH-112, ZH-154

Plucker: ZH-30, ZH-40, ZH-50, ZH-60

cages,Poultry feeder &drinker, manure cleaning machine and debeaker etc .
